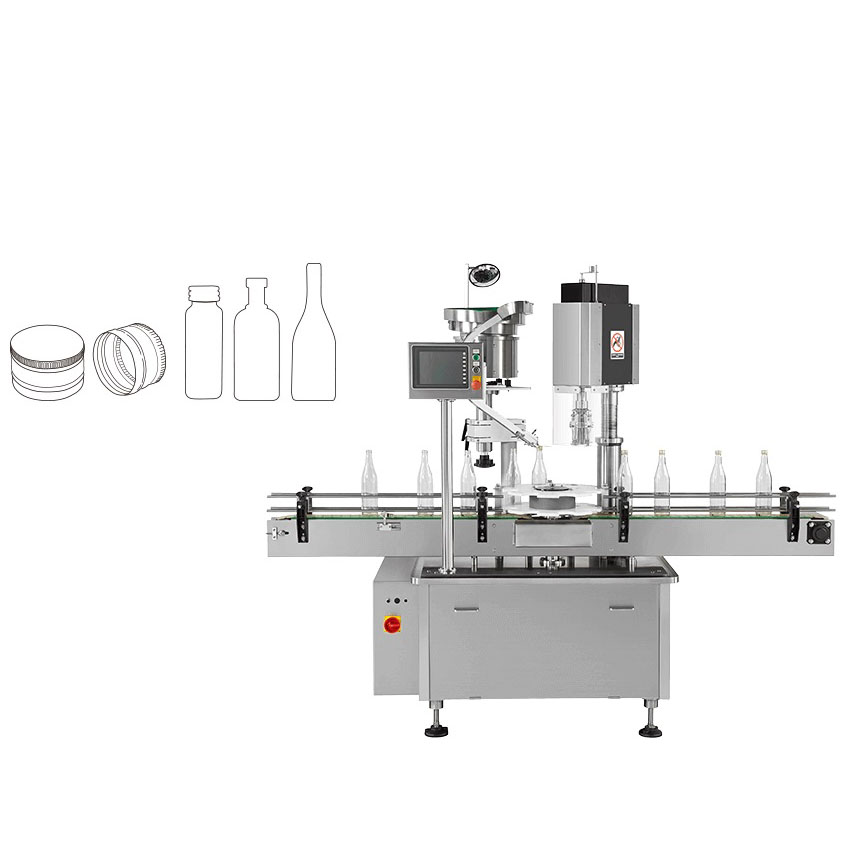

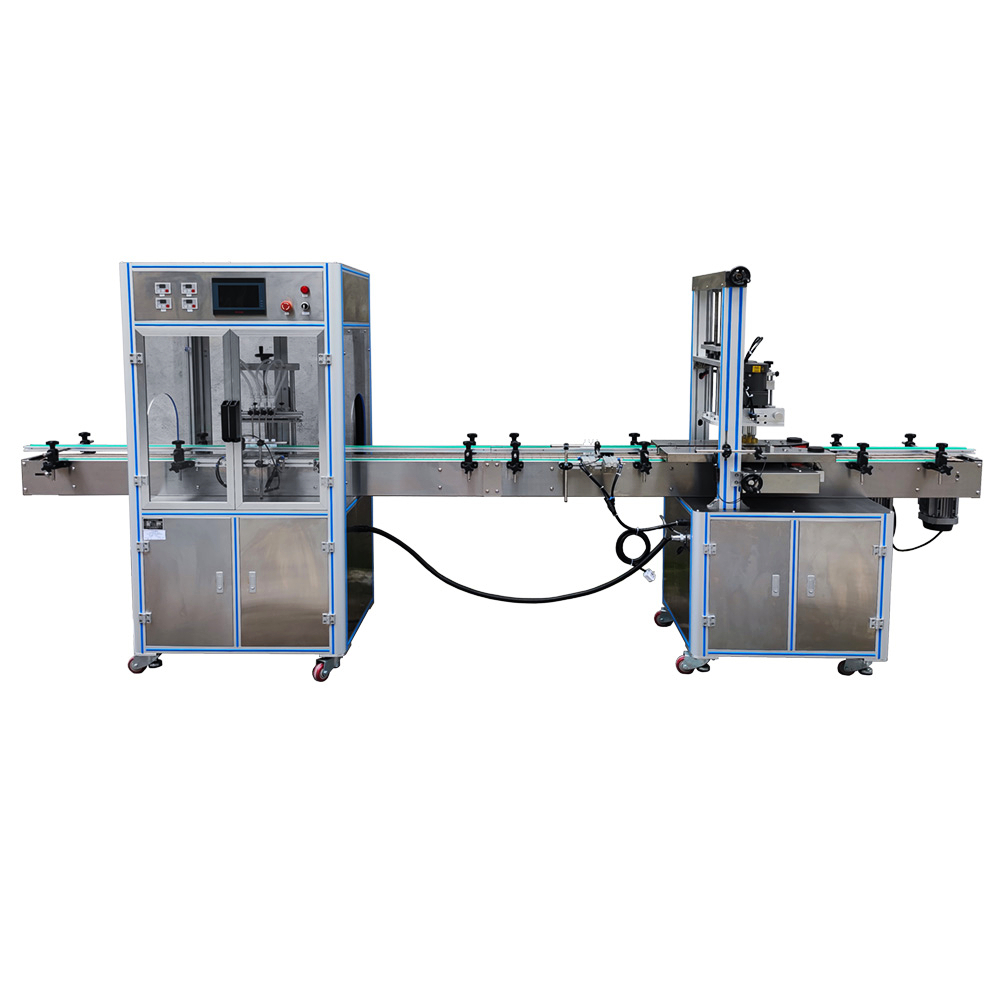

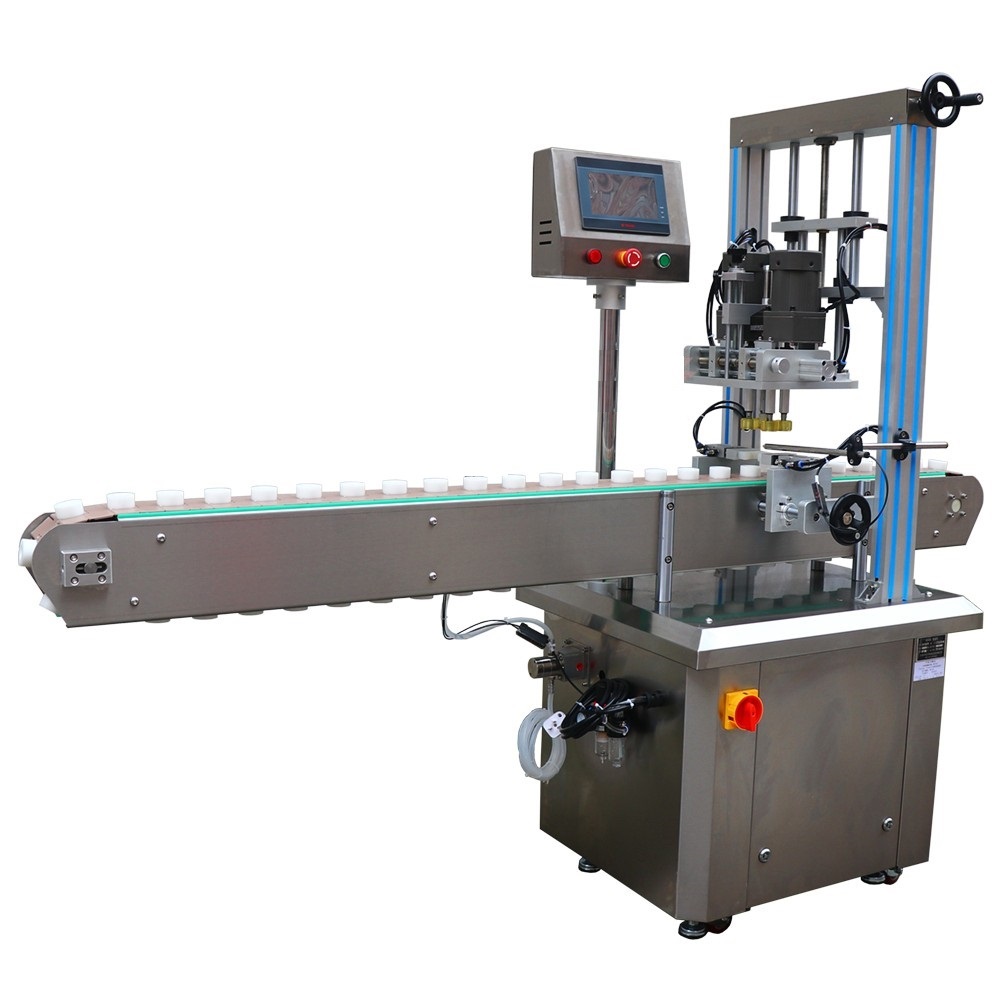

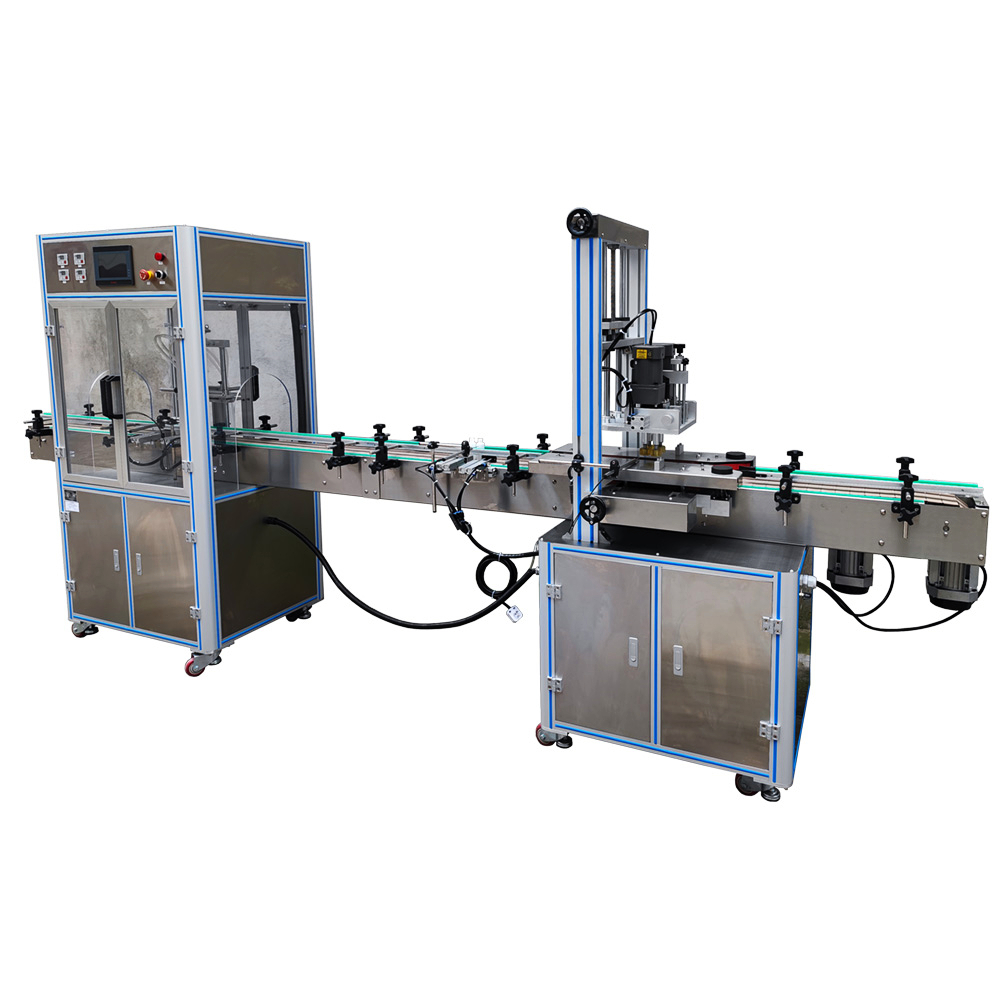

Capping Machine
This high-performance straight through capper is designed to handle a wide range of cap shapes and sizes. It is easy to run,easy to adjust and use a minimum of components to provide versatile,high quality capping.

The versatile cap is designed for rapid change over by using a minimum of cap size change parts. One sorter,chute, and adjustable chute end can handle most caps in either the 13-38mm or 38-70mm size range. A simple quick-change adjustable chute end that snaps into position without tools is needed for each major cap size variation.

Operation principle
Cushioned gripper belts are adjustable to move containers of nearly any size and shape smoothly through the capping operation without the need for timing stars or feed screws. Caps are positioned from a chute in the cap escapement assembly, picked up by the container neck finish and positioned for tightening.

An independently driven overhead assembly with matching sets of polyurethane disc assures tight capping. The first set of disc gives caps a quick initial twist. The next set of discs draws the cap onto the container neck. The cap sorter, tightening discs, and machine/conveyor are controlled through three electrically controlled by variable speed drives.

Standard features
Fully automatic operation
Rotary vertical cap sorter and feeder with pinsorting wheel
Stainless steel cap chute
Custom designed cap chute spacers
Adjustable cap chute end with cap stabilizer and wiper
One set of bottle gripper belt synchronized to conveyor drive
Two sets of tightening stations
Photoelectric cap chute sensor to control cap backlog

Options & accessories
Increased hopper size for added capacity
Division dial and inner ring for caps whose height exceeds their diameter

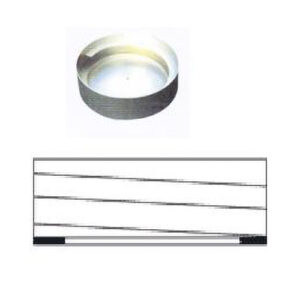

Vibratory bowl feeder or centrifugal feeder available
Additional cap chute end,cap stabilizer and wiper for cap with special shapes
Cap delay for capping plastic “F”style jugs
Additional tightening disc stations
Automatic wear compensation for tightening disc stations moves wheels in toward centerline when wear is experienced
Tightening disc clutches
Elevation screws for quick height adjustment of bottle gripper belts
Second set of bottle gripper belts for unstable bottles
Profile sorting ring for caps with irregular shape
Snap-cap pressing package for use in addition to or in lieu of screw-on type mechanism
Special corrosive environment package
Overcapper or fitment insert design
