Volume inline Filling Machine

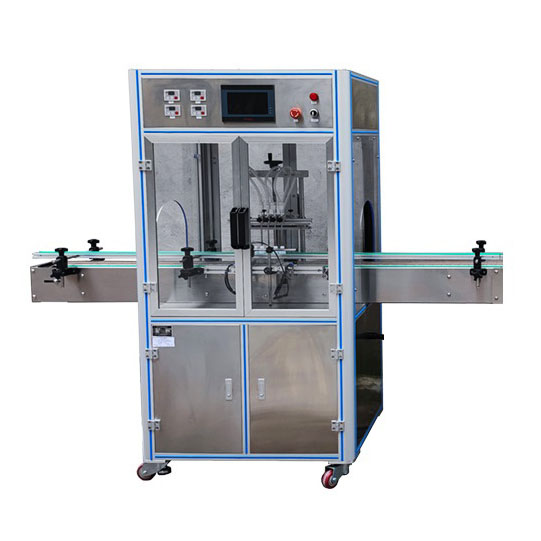

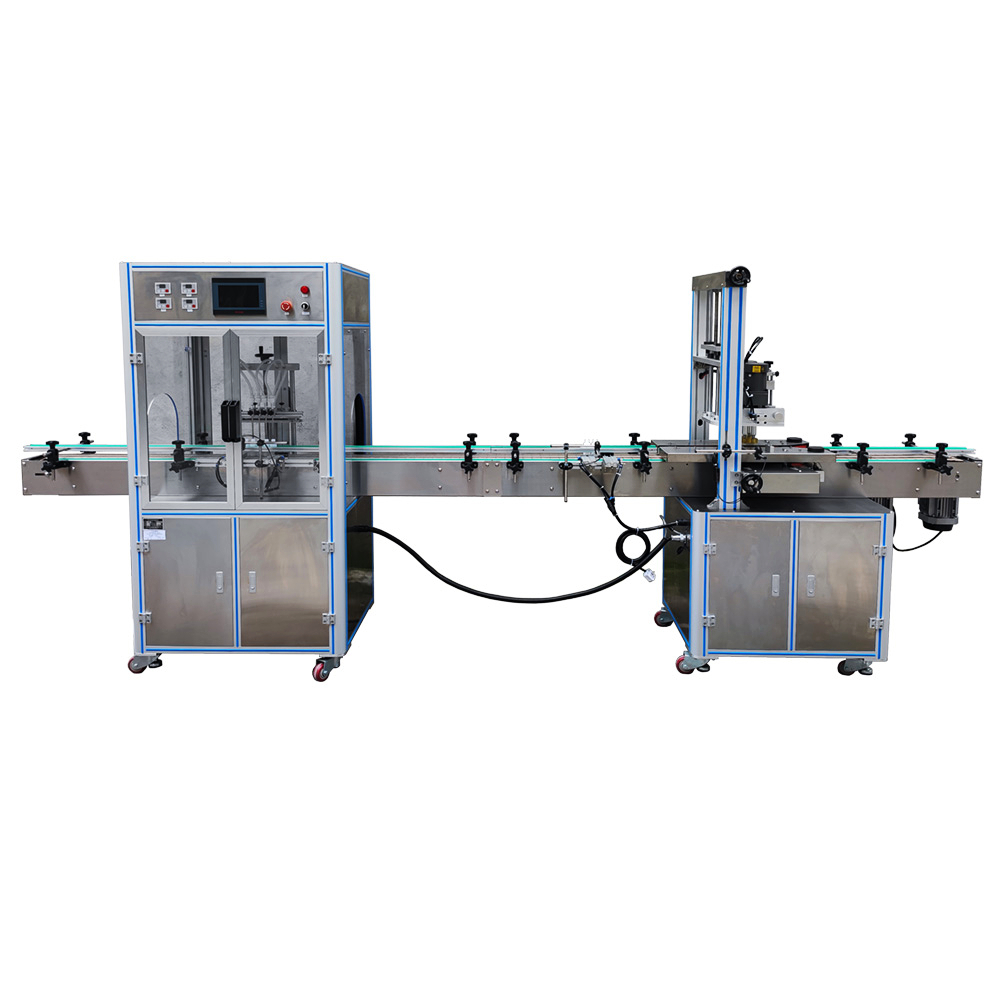

Volumetric inline filler(VIF)

The VIF is a reliable,high performance aseptic liquid filling machine,designed with Class 100 clean rooms in mind in conformance with current and proposed cGMPs. This model can use overhead laminar airflow to its fullest using a straight-line concept.
Each machine custom designed for your specific packaging requirements. The HUILIDE simple filling two-piece syringes and valve assemblies are designed for sterile,bacteria-free environments.High precision machining of our syringes allows each machine to achieve a fill accuracy better than plus or minus one half of one percent by volume. Other fill methods are available.

Filling principle
Containers are positioned in the machine by a set of adjustable gating fingers.
A diving nozzle system creates bottom-up filling on a range from 0-100mm. A drop control mechanism eliminates a hanging drop at the completion of the fill cycle.

The gating device is adjustable for containers of various diameters. By setting the gates for half the number of the containers, the machine can be set up to double dose. This is useful in the event you have a need to fill above the single dose range of the filling syringes.

The VIF-8 is a positive displacement liquid filler,operating on a 100mm pump stroke, with a maximum pump size of 600ml. Accuracies of +/-0.5% of fill volume can be achieved by proper sizing of the pistons and fill nozzles.

Controls
The PLC controls intermittent container handling through the timing feedscrew. This feedscrew can be set to multidose,which provides maximum production for large fills or when running foamy products.

Machine Features
316L stainless steel syringes
316L stainless steel nozzles and nozzle holders
304 stainless steel adjacent or above the product zone
Volume adjustment
Left to right container flow
Operation and maintenance manual
